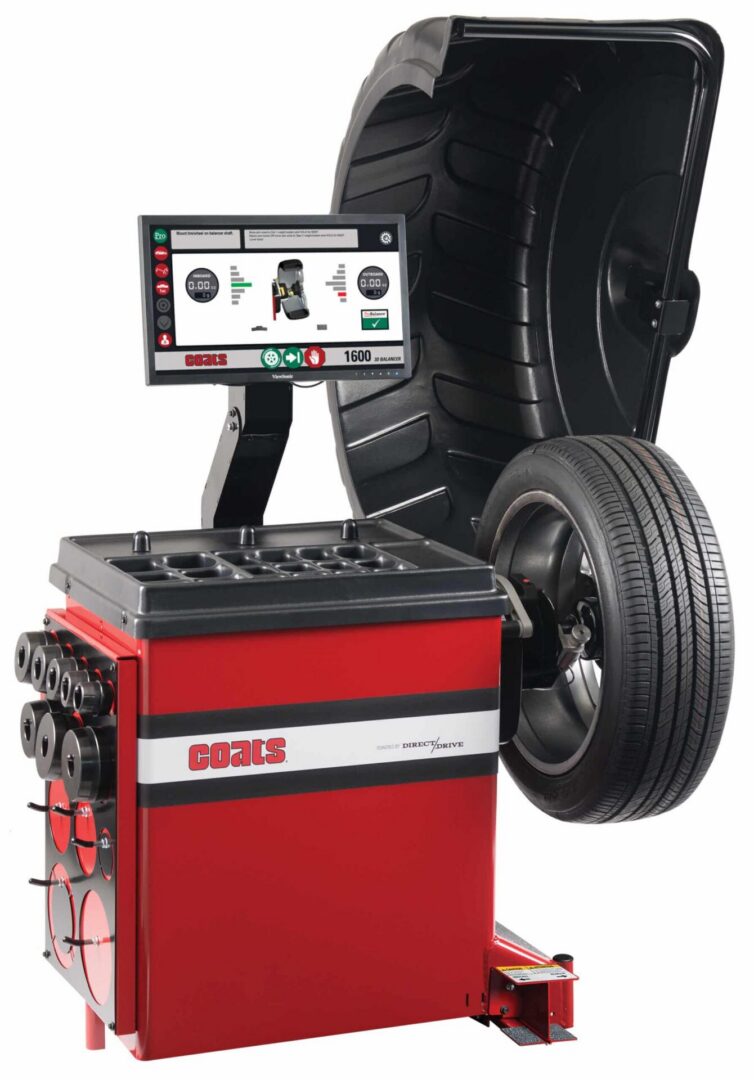

Coats 1600-3D Tire Balancer
Remanufactured with Warranty
$6,499.00
INVENTORY SALE – DISCOUNTS AVAILABLE – FINANCE AS LOW AS $66.00 A MONTH
CALL 937-379-0200 TODAY
Product Description
Remanufactured
Coats 1600-3D
Wheel Balancer
A High Volume Solution
What Makes Us Different Is Our Process
Our Machines Are More Than A Quick Paint Job
True Rebuilds Require The Following
- Balancer is completely disassembled down to the Frame.
- Frame is stripped, primed and refinished with Industrial Grade primer and enamel.
- Direct Drive Motor is disassembled and cleaned thoroughly and then repainted and tested.
- Encoder is checked for proper function and replaced with NEW as needed.
- Cooling Fan is cleaned and tested.
- PCB Board is taken off the Control Panel and cleaned and tested with factory diagnostic equipment to meet load ratings.
- Control Panel is cleaned and tested with Factory Diagnostic Equipment specific to this panel.
- Motor Control Boards tested with Diagnostic Equipment.
- Limit Switches are tested and replaced with NEW as needed.
- ALL Plastic Trim, Hood, Tray, Shroud on Motor, Cone Holder, Screen Holder are cleaned and refinished.
- EachCone Set and Hub Nut that comes with the Balancer is sand blasted clean and checked for defects. Then tested to ensure they fit Balancer Shaft for accurate balancing.
- Each hub is cleaned and relubricated.
- After the Balancer is reassembled it is recalibrated and tested a minimum of 25 times with various size rims and tires to ensure the Motor Mount Piezos are reading true and the overall performance of the Balancer is ready for daily operation.
- All Factory Labels are replaced with Brand NEW Labels
- Complete PDF copies of the Operator and Spare Parts Manuals come with each machine.
- The Balancer is then stretch wrapped and banded to a pallet with steel strapping for safe shipping worldwide.
All Balancers include a Parts Warranty
1 Year On Drive Motor and 90 Days On Remaining Major Components
With Lifetime Technical Support
Key Features
Touchscreen
The Coats® 1600 Wheel Balancer incorporates an intuitive touchscreen to allow any technician to quickly become a seasoned professional. The easy to use, US made interface is made for US technicians.
Speed Thread
Make cranking the hubnut a thing of the past. Thread the hubnut with the push of a pedal and operate faster by eliminating the need for hand spinning the hubnut.
Enhanced Laser guided Operation
The laser pin points the exact Tape-A-Weight™ location, with 5 o’clock and 10 o’clock tape weight application to provide a clear visual and result in a faster, more accurate balance.
Probalance Technology
Our unique balancing system (unbalance correction methodology) minimizes both static and couple unbalance. Other balancers may never even notify you of residual static.
Automatic offset and diameter data entry for both clip and Tape-A-Weight increases productivity and provides accuracy for single-spin balances.
Direct Tape-A-Weight placement and laser-guided operation eliminates guesswork, resulting in single-spin Tape-A-Weight balances.
Easy behind-the-spoke weight placement helps maintain a clean look on custom wheels.
1.5 HP Direct Drive motor delivers best-in-class speed, accuracy and longevity.
Specifications
Car and Light Truck
8″ – 30” Rim Diameter
2″ – 20” Rim Width
44” Max Tire Diameter
8 Balancing Modes
Direct Drive
Touchscreen Display/ Interface
Probalance Technology
Distance/ Diameter/ Width Auto Data Entry
Stop, Lock, Indexing
Laser Guided Operation
57″w x 55″d x 75″h Footprint
Power Requirement: 220v AC – 1 PH – 60Hz, or 220v AC – 3PH – 60Hz
Accessory Storage: Optional Peg Kit (8111480)
Shipping Weight: 654 lbs.
REMANUFACTURED BY:
Industrial Engineered Solutions
BUY NOW – $6499.00
Remanufacturing Service Available
for your Coats Tire Equipment
(Please visit our rebuild service section of website for more information)
Trade in your tire equipment for one of our completely rebuilt units…
We also purchase used tire equipment
We are the largest tire equipment rebuilder in the US
$ 299.00 Shipping
Shipping Cost for this item is to most locations in the US and Canada
Certain remote locations may require additional cost
Shipping costs includes delivery of your order to a business address
with a dock or other way to load or unload truck
Liftgate, Residential, and Limited Access Delivery require additional costs if needed for shipment.
ALL MAJOR CREDIT OR DEBIT CARDS ACCEPTED
Please call 937-379-0200 with any questions you may have
8 am – 4:30 pm Eastern Time Monday – Friday
Yes we ship International
Additional shipping cost applies – Call for Quote
IES sells Quality remanufactured products
The contents of this EBAY listing refers to remanufactured products and/or equipment.
IES takes pride in the extensive rebuilding efforts its trained technicians provide for every piece of equipment sold.
Each product listing details the remanufacturing process IES uses for each product it sells.
The products sold on EBAY have not been endorsed by or approved by the original manufacturer and the products do not fall under the original manufacturer’s warranty.
Where indicated, IES provides buyer protection for a parts warranty and full technical support.
COATS®, ROBO-ARM®, RIM CLAMP®, GRIP-MAX®, and other trademarks are registered trademarks owned by Hennessy Industries, Inc.
Additional Information
| Weight | 654 lbs |
|---|---|
| Dimensions | 52 × 48 × 63 in |
| Brand | Coats |
| Product Type | Wheel Balancer |
| Warranty | Yes |
| Vehicle Type | Heavy Duty/Commercial, Passenger Vehicle |
| Manufacturer Part Number | 1400-2D |
| Set or Single Item | Single Item |
| Country/Region of Manufacture | United States |
| Condition | Seller refurbished |
